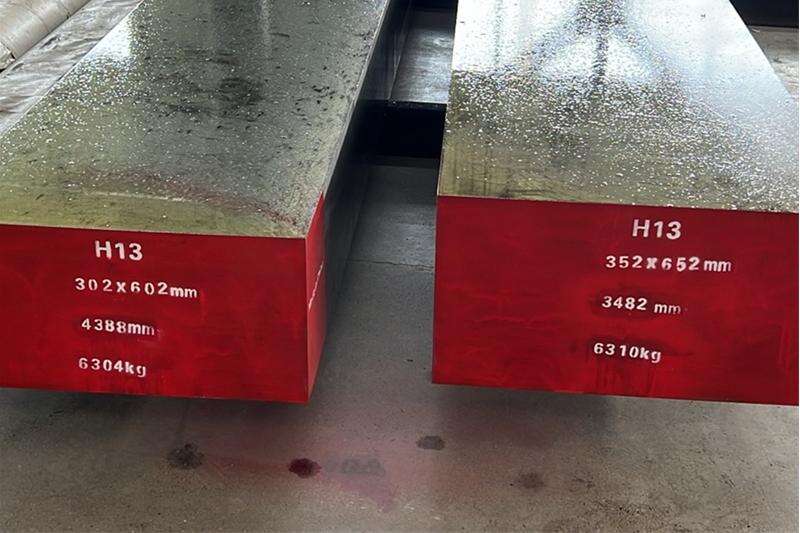

Tool steels need to handle all that back and forth heating between around 250 to 500 degrees Celsius without developing cracks, which is actually one of the main reasons why die casting molds fail so often. The H13 hot work steel really stands out here, holding together even after millions of these temperature changes during aluminum casting jobs. Newer versions of this steel typically contain about 5 percent chromium along with roughly 1.5 percent molybdenum added specifically to stop those pesky heat checks from spreading in parts where stress builds up most, like near the ejector pins or around the gates on the mold.
Chromium content above 4.5% improves oxidation resistance where molten metal contacts the mould surface. Vanadium (0.8–1.2%) enhances tempering stability, while tungsten (1.5–2.1%) contributes to hot hardness and silicon (0.8–1.2%) supports thermal conductivity. This balanced composition extends service life by 23% compared to standard alloys in zinc die casting operations.
| Steel Grade | Thermal Fatigue Resistance | Hardness (HRC) | Optimal Pressure Range |
|---|---|---|---|
| H13 | Excellent (1M+ cycles) | 48-52 | ≤800 bar |
| H11 | Good (500K cycles) | 46-50 | ≤600 bar |
| S7 | Moderate (300K cycles) | 56-60 | ≤400 bar |
H13’s 0.40% carbon content offers the optimal balance between shock resistance and wear performance, making it ideal for aluminum and magnesium die casting moulds operating above 600 bar.
Plasma nitriding increases surface hardness to 500HV, reducing erosion rates by 40% in core inserts exposed to molten metal flow. Grain refinement via vacuum arc remelting reduces inclusion size by 90%, significantly improving fracture toughness in critical components like slides and lifters.

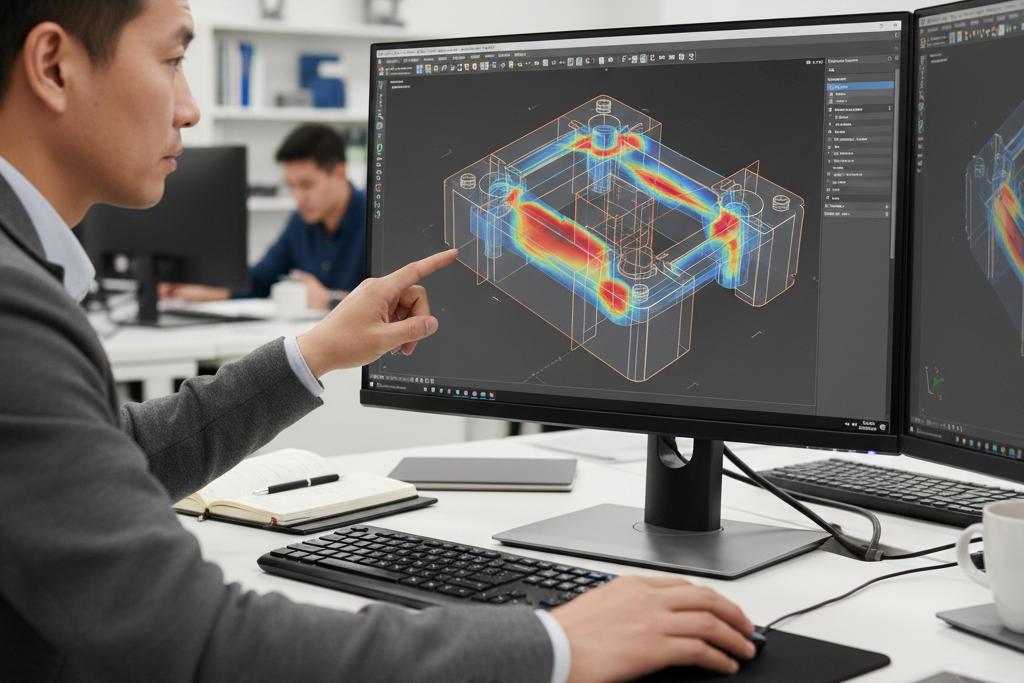

When it comes to mould failures, stress concentration tends to be right at the top of the list of culprits. Making smart design tweaks can make all the difference here. For instance, creating smooth transitions where section thickness changes and maintaining at least 3mm radius corners for aluminum parts helps cut down on those stressful hotspots by around half to three quarters in problem areas such as core pin interfaces and cavity edge regions. These days most engineers rely heavily on simulation software to spot trouble spots during early design stages. Once identified, they can strengthen those weak links well before any actual tooling gets underway, saving time and money down the line.
When draft angles go beyond about 3 degrees on each side, they actually cut down on those ejection forces that cause roughly 38% of all mold surface wear according to NADCA data from last year. Parts with really small corner radii under half a millimeter tend to start developing cracks much faster compared to ones with proper radiusing. Getting those parting lines just right matters too. If machined precisely within around 0.02 mm alignment tolerance, it stops flash from forming, something that definitely speeds up how quickly components break down over time.

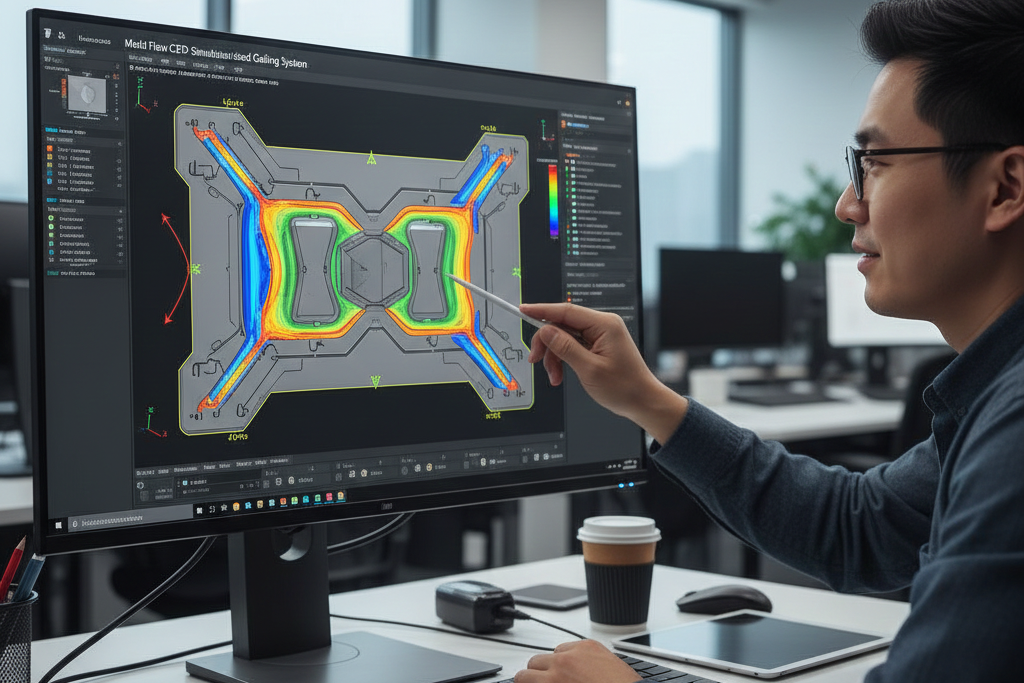

Gates larger than 12mm²/mm² casting volume induce turbulent flows that erode steel surfaces 2.5x faster than optimized configurations. Angled runner systems with 45–60° entry angles minimize direct impingement on cavity walls while keeping fill speeds under 50m/s — the threshold for sustainable mold longevity in zinc and aluminum applications.
DFM practices eliminate 63% of production-related mold stresses through standardized geometries and simplified ejection mechanisms. Modular designs with replaceable inserts extend tool lifespan by 200–300% over monolithic constructions. Early collaboration between design engineers and foundry technicians ensures alignment of thermal expansion coefficients with cycle parameters, reducing thermal shock effects.
Effective thermal control determines how well die casting moulds endure repeated thermal cycles while preserving dimensional accuracy. Uniform heat distribution minimizes residual stresses that lead to premature cracking, especially in moulds handling molten aluminum at 600–700°C.

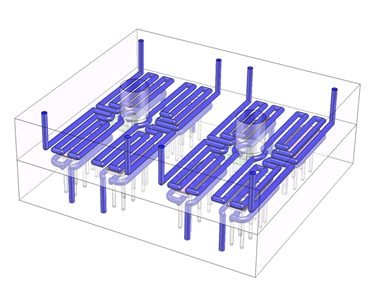

Conformal cooling channels follow the mould's geometry to eliminate hot spots, limiting temperature variation to ≤15°C across critical surfaces. This uniformity prevents uneven solidification, which causes 23% of defects in high-pressure die casting (HPDC). Water-glycol mixtures flowing at 8–12 m/s extract heat 40% faster than traditional straight-bore systems.
When it comes to pulsed cooling, what happens is that the flow rate changes during those ejection phases. This approach cuts down on thermal shock quite significantly actually around 34 percent when compared against continuous cooling methods. Another thing manufacturers have started using are thermal barrier coatings like aluminum chromium nitride or AlCrN for short. These coatings work by slowing down how fast heat moves into the mold base itself. According to Tooling International from last year, this helps reduce those annoying expansion and contraction stresses by roughly 19%. Putting both techniques together makes a real difference too. Mold makers report that their H13 steel molds can last anywhere between two thousand to three thousand production cycles before needing any kind of maintenance or repair work. That's pretty impressive considering how demanding some manufacturing processes can be.
Automated thermal profiling adjusts coolant temperatures ±2°C using real-time infrared sensor feedback, enabling faster cycles without exceeding thermal limits. Each 10-second reduction below 45 seconds decreases mould life by 8%, but dynamic cooling maintains core temperatures ≤300°C, preserving durability. This approach sustains 85–92% uptime while meeting annual production targets.
The core pins create those essential internal shapes inside molds, and the ejector systems play a critical role in getting those hardened parts out without damaging them. When it comes to inserts, we're talking about high quality tool steels rated at least 45 on the Rockwell C scale. These materials hold their shape remarkably well even after going through over a hundred thousand production cycles. A tiny misalignment of just plus or minus 0.025 millimeters can actually boost wear along the parting line by nearly 18 percent according to recent studies published in the Journal of Materials Processing back in 2023. That's why precision is so important here, aiming for tolerances under ten micrometers makes all the difference. And let's not forget about those advanced CNC machines either. They produce incredibly smooth surfaces with readings below Ra 0.4 micrometers, which cuts down on the extra work needed for finishing by around thirty percent overall.

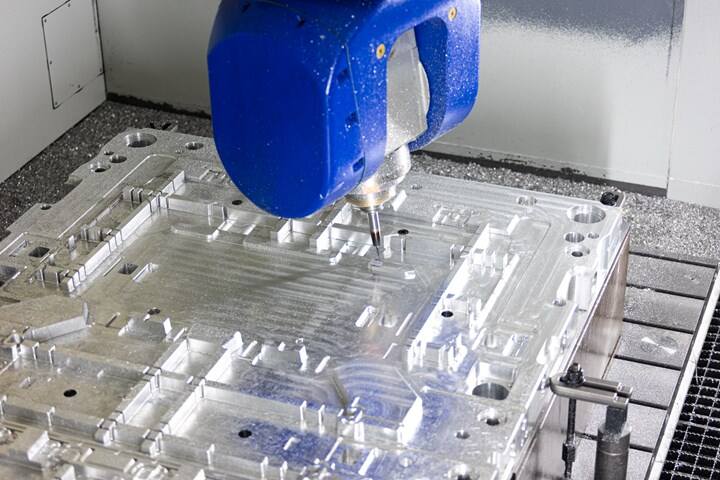

Five axis CNC machines can achieve angular precision around plus or minus 0.001 degrees, which really matters when making those complicated conformal cooling channels and keeping things from warping due to heat. The hardened guide pillars work best when combined with ground bushings that have at least 2 microns of flatness, this setup stops metal parts from sticking together during movement. When it comes to tool paths, real time adjustments cut down on positioning mistakes by about two thirds over regular approaches. We saw this happen firsthand in some recent tests with car dies back in 2024 according to the latest efficiency report from the tooling industry.
Studies from Metalworking in 2023 show that proactive maintenance cuts down on unexpected downtime by about 35% compared to waiting until something breaks down. When manufacturers regularly check their equipment, they spot problems early on like when gates start wearing away or tiny cracks form in materials. These issues typically develop at around half a millimeter per year but catch them before they cause major headaches during production runs. Modern tools such as cavity pressure sensors along with thermal imaging technology help find these problems after only about five thousand operating cycles. Fixing these smaller issues costs roughly a third of what it would take to replace entire dies, making regular checks both economically smart and operationally essential for most shops.
A structured 6-phase maintenance protocol extends mould life by 40–60% in multi-cavity applications:
Manufacturers following this regimen achieve over 200,000 cycles between major overhauls while maintaining ±0.1% dimensional consistency.
Thermal fatigue resistance is crucial because die casting involves rapid temperature changes. Materials that resist these changes prevent cracks and prolong mould life.
Alloy composition can enhance oxidation resistance, tempering stability, thermal conductivity, and hot hardness, which collectively extend mould lifespan and performance.
Proper draft angles reduce ejection forces and surface wear, while adequately radiused corners prevent crack development, enhancing the overall durability of moulds.
Efficient cooling systems ensure uniform temperature distribution within the mould, reducing residual stresses and preventing premature cracking or defects.
Regular inspections, early detection tools, structured cleaning, and proper alignment verification are essential practices that extend mould life and reduce downtime.
